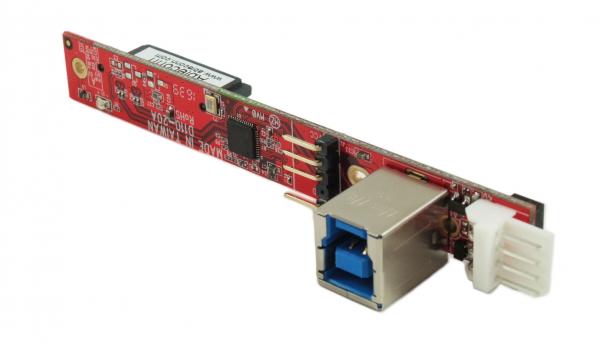

Ableconn IUSB3SAOD SATA Slimline Optical Drive (ODD) to USB 3.0 Type-B (F) Mini Vertical Adapter Board - Convert a Slim SATA Optical Drive to a USB 3.0 ODD Drive

Ableconn IUSB3SAOD SATA Slimline Optical Drive (ODD) to USB 3.0 Type-B (F) Mini Vertical Adapter Board - Convert a Slim SATA Optical Drive to a USB 3.0 ODD Drive

  • Product Specification:

    • Dimensions 4 x 0.5 x 1 in / 101.6 x 12.7 x 25.4 mm
    • Weight 0.4 oz / 11.3 g
    • Capacity USB 3.0 up to 5 Gbps
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS
  • Buy at Amazon

Product Description

Feature Bullets

  • Convert any Slim Type of SATA ODD to USB3.0 interface for your Rack Mount Server or Raspberry Pi!
  • Adapter board directly attached and screwed to slim ODD with included Mounting Screws. Ideal for Rack Mount System, Server, Network Attached Storage, Mini ITX, and Rasperry Pi.
  • Support both USB 3.0 Type-B connector and USB 5-Pin Pin Header for host interface
  • Two power source options: PCBA and SATA slim drive can be powered by the 5V input power of USB bus from Host, or powered by power supply if a 4-Pin Molex Power connector for floppy (12V & 5V) is connected
  • Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description

The Ableconn IUSB3SAOD let you Convert any Slim Type of SATA ODD to USB 3.0 interface for your Rack Mount Server!


Specification

  • Support any type of SATA Slim device

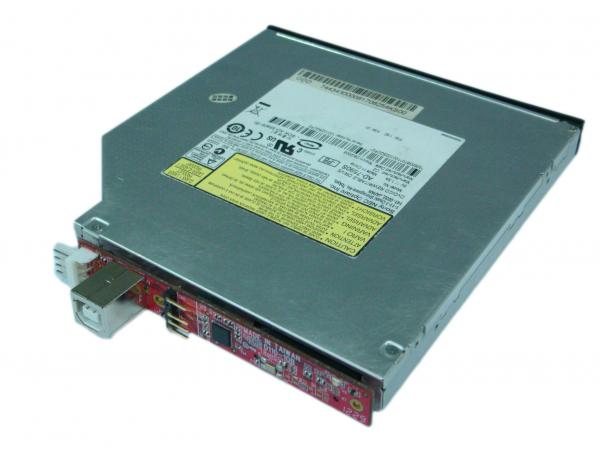

  • Adapter board directly attached and screwed to slim ODD with included Mounting Screws
  • Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX

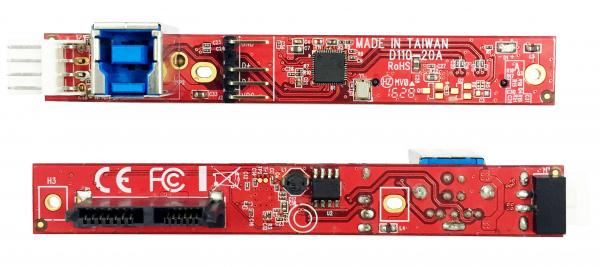

  • Support both USB 2.0 5-Pin Pin Header and USB 3.0 Type-B connector for host interface

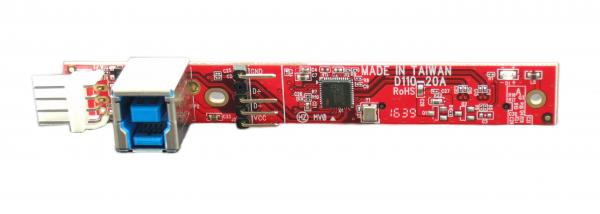

  • USB 2.0 5-Pin Pin Header assignment: 5V, D-, D+, NC, GND
  • Two power source options: PCBA and SATA slim drive can be powered by the 5V input power of USB bus from Host, or powered by power supply if a 4-Pin Molex Power connector for floppy (12V & 5V) is connected
  • SuperSpeed USB 3.0 High transfer rate of 5 Gbps
  • Compliant with Universal Serial Bus Specification Revision 3.0 Revision 1.0
  • Support Spread Spectrum in receiver
  • Compliant with Serial ATA specifications Revision 3.0
  • Fully RoHS compliant.


Package Contents

  • Ableconn IUSB3SAOD SATA Slimline ODD to USB 3.0 Host Mini Vertical Adapter
  • Two (2) mounting screws
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
