Ableconn PEXM2-2SA Dual SATA M.2 SSD-HDD Hybrid RAID Controller PCI Express Card - Support 2x M.2 NGFF SSDs + 2x SATA III (6G) Ports

Ableconn PEXM2-2SA Dual SATA M.2 SSD-HDD Hybrid RAID Controller PCI Express Card - Support 2x M.2 NGFF SSDs + 2x SATA III (6G) Ports

  • Product Specifications:

    • Dimensions 6.6 x 2.2 x 0.6 inches / 167 x 55 x 16 mm
    • Weight 2.4 ounces / 68 g
    • Capacity PCIe x4 Lane; Up to 6 Gbps (SATA III)
    • Chipset Marvell 88SE9230
    • Supported System No driver installation is required. The AHCI drivers are natively built-in on Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • PCIe x4 Lane card with two M.2 (NGFF) SATA SSD slots and two SATA III host ports. Support Port Multiplier allows you to connect up to seven drives total including two M.2 SSD drives.
  • Built with Marvell 88SE9230 chipset supports Hardware RAID 0, 1, 10 (1+0), JBOD and Hybrid Drive Mode which leverages high speed performance of SSDs and storage capacity of HDDs. Support Port Multiplier and NCQ commands
  • Supports M.2 NGFF 110mm, 80mm, 60mm, 42mm SATA SSD. Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
  • No driver installation required. Support Windows 10/8, Server 2012 R2, Linux, etc.
  • Fully RoHS compliant. Made in Taiwan.


Product Description

The Ableconn PEXM2-2SA is a 2-port SATA III PCIe host controller combined with two M.2 NGFF SATA SSD slots. It supports hardware RAID and Hybrid drive modes so you can leverage the speed of SSDs and capacity of HDDs.


Features

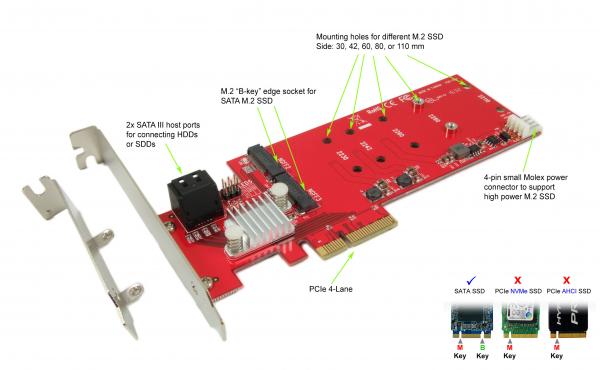

  • Connector:
    • 2x B-key (type 22110-D5-B) M.2 socket for M.2 NGFF SATA based SSD
    • 2x 7-pin SATA connectors
    • 1 x 4-pin small Molex power connector (optional connection for high power M.2 SSDs)
  • Chipset: Marvell 88SE9230
  • Software:
    • No driver installation required. The AHCI drivers are natively built-in on most Operating Systems
    • Support Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
  • System Requirement:
    • An empty PCIe x4, x8, or x16 slot.
  • Supported Modes of Operation:
    • RAID Modes: hardware RAID 0, 1, 10 (1+0), JBOD
    • Hybrid Drive (HDD+SDD) Modes: Safe Mode (Mirrored Protection), Capacity Mode (Cost-Optimized)
  • Port Multiplier: 2x SATA ports support Port Multiplier, but can only use 1 PM at a time. Support up to 4 drives through PM.
  • Two (2) 6 Gbps SATA III host Ports and two (2) M.2 sockets on board
  • PCI Express 2.0 x4 Lane Host adapter (electrically a x2 Lane card) low-profile form factor board equipped with a full-profile bracket, and include a low-profile for small form factor computers.
  • Compliant with 5Gbps PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.0
  • Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
  • Supports Native Command Queuing (NCQ) as well as ATA and ATAPI commands
  • Support one (1) FIS-based or Command-based Port Multiplier with up to four (4) drives through PM. The board supports up to seven (7) drives in total.
  • Three Pin headers on board for LED connection

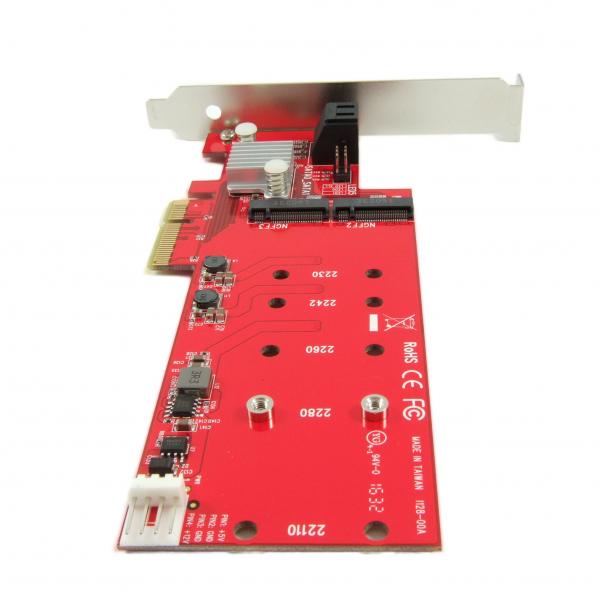

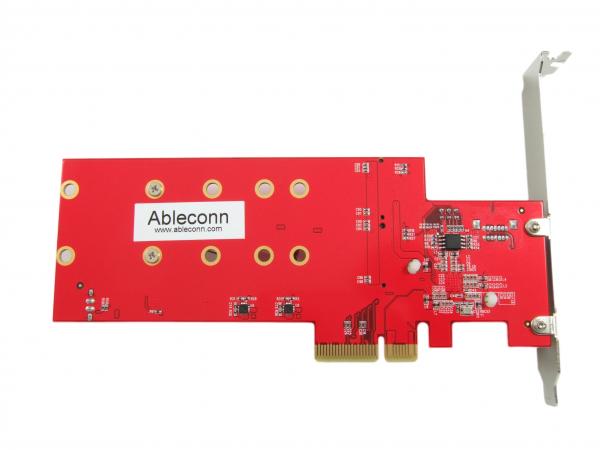

  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 M.2. Supports M.2 NGFF 110mm, 80mm, 60mm, 42mm SSDs.
  • Operating temperature range: 0 - 60 °C
  • Storage temperature range: -40 - 75 °C
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PEXM2-2SA Dual SATA M.2 SSD-HDD Hybrid Controller PCI Express Card
  • 1x low profile PCIe bracket
  • 2x mounting screws


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
