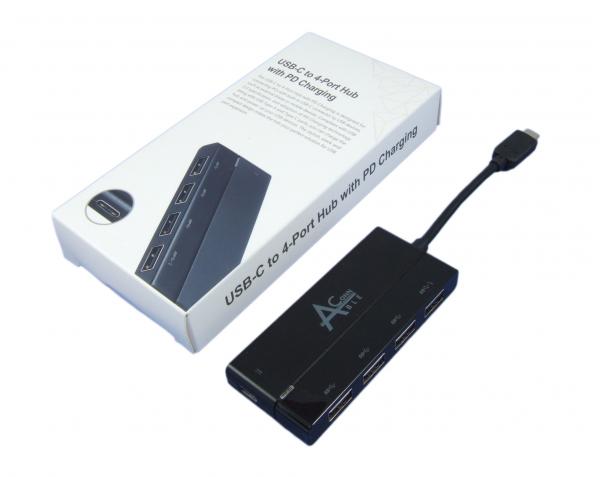

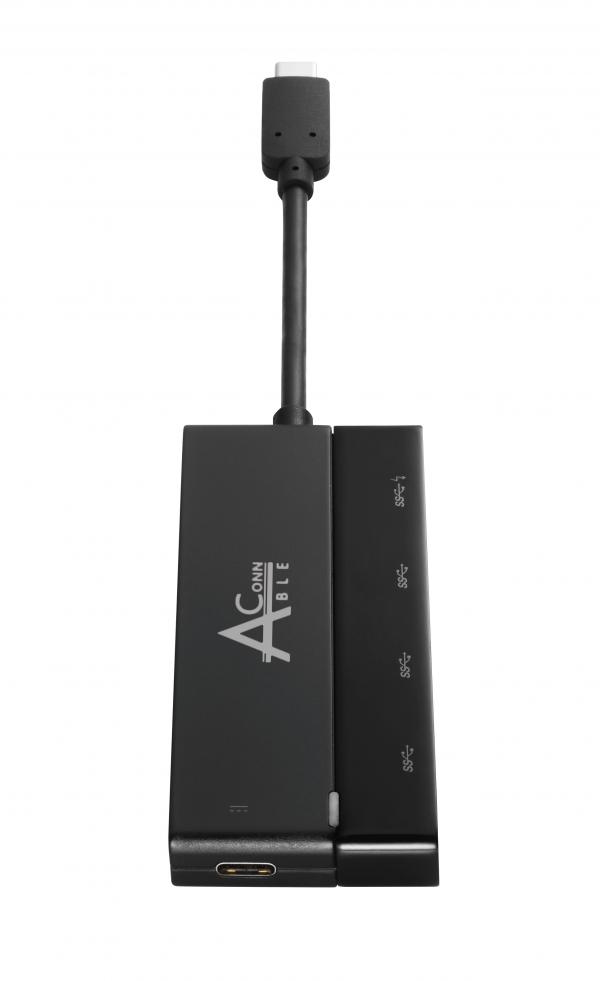

Ableconn USBC-4APD USB-C 4-Port USB 3.0 Hub with Power Delivery (PD) for MacBook Pro 2016, MacBook Retina 12

Ableconn USBC-4APD USB-C 4-Port USB 3.0 Hub with Power Delivery (PD) for MacBook Pro 2016, MacBook Retina 12

  • Product Specification:

    • Dimensions 3.6 x 1.5 x 0.5 / 90 x 39 x 12 mm ; cable length 2.4in / 60 mm
    • Weight 1.5 ounces / 44 g
    • Capacity USB 3.0 up to 5 Gbps
    • Input USB-C male
    • Output HDMI female (Type A), USB-C power pass-through input female
    • Color Black
    • Chipset VIA VL813 USB 3.0 Hub (firmware v9015) + VL100 USB PD controller
    • Compatibility No driver installation required on Microsoft Windows 10/ 8/ 7, Mac OS X, ChromeOS, Linux
    • Certification FCC, CE
  • United States

Product Description

Feature Bullets



  • Turn one USB-C port into four standard USB-A ports for your existing USB 3.0/2.0/1.x devices with one port supports BC1.2 for phone fast charging. The Hub features USB-C Power Delivery (PD) capability that allows pass-through charging from power source to your computer by inserting the power adapter comes with your PC into the USB-C power input port.
  • Powered by USB-IF certified VIA VL813 USB 3.0 Hub chip and VL100 USB PD controller chip for maximum device compatibility and performance. Support USB 3.0 data rates up to 5 Gbps and backward compatible with USB 2.0/1.x devices.
  • Plug and Play. No driver installation required on Microsoft Windows 10/ 8/ 7, Mac OS X, ChromeOS, Linux.
  • It can be used as USB bus-powered (without charger input connected) or self-powered (with charger input connected)
  • Compatible with host computers such as the MacBook Pro 2016, MacBook Retina 12" 2015/2016, Google Chromebook Pixel 2015, DELL XPS 2016, HP Pavilion x2, and ASUS Zen AiO PC, etc.



Product Description

The Ableconn USBC-4APD USB-C to 4-Port Hub with PD Charging allows for adding up to 4 standard USB-A ports with one port BC1.2 fast charging capable to your new computers with USB-C port. The Hub supports Power Delivery Charging feature which allows pass-through charging your computer by inserting the power adapter that comes with your PC into the USB-C power input port of the hub.

Specifications

  • Connector:
    • 1 x Host upstream link, USB 3.1 type C (USB-C) male
    • 4 x Hub downstream link, USB 3.0 type A female (one port supports BC 1.2 fast charging)
    • 1 x downstream USB-C Power input port female (pass through charging from downstream USB-C to upstream)
  • Chipset: VIA VL813 USB 3.0 Hub (firmware v9015) + VL100 USB PD controller
  • USB 3.0 data transfer up to 5 Gbps
  • Backwards compatible with USB 3.0, 2.0, and 1.x devices
  • Power supply to downstream ports:
  • Bus-Powered (without charger): the total output power depends on the host computer
  • Self-powered (with charger): the total output power must be limited to 2A max
  • Operation Temperature: 0~40 C degree; Storage Temperature: -20~70 C degree
  • Dimension: 3.6 x 1.5 x 0.5 inches; Cable length: 2.4 inches
  • Weight: 1.5 ounces
  • Certification: FCC, CE



OS and Drivers

  • Microsoft Windows 10/ 8/ 7, Mac OS X, ChromeOS, Linux
  • No device driver installation is required.


Compatibility List

  • Apple MacBook Pro 2016, MacBook Retina 12" 2015/2016
  • Google Chrombook Pixel 2015
  • DELL XPS 2016
  • HP Pavilion x2
  • Asus Zen AiO PC
  • Other laptops, desktop computers with a USB-C port


Package Contents

  • Ableconn USB-C to 4-Port Hub with PD Charging
