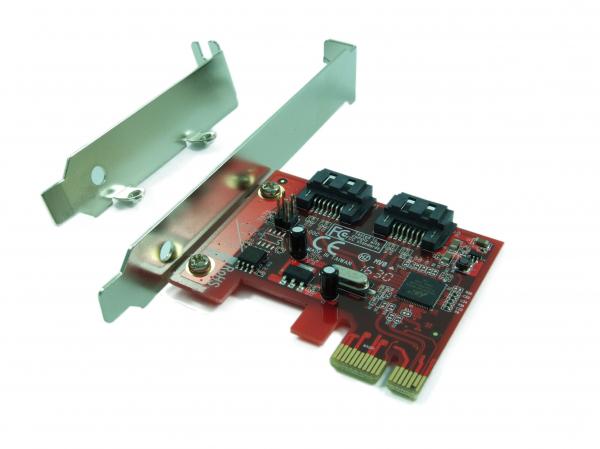

Ableconn PEX-SA115 2 Port SATA 6G PCI Express Host Adapter Card - AHCI 6Gbps SATA III PCIe 2.0 Controller Card (Marvell 88SE9128 Chipset) - Support Hardware RAID 0, 1

Ableconn PEX-SA115 2 Port SATA 6G PCI Express Host Adapter Card - AHCI 6Gbps SATA III PCIe 2.0 Controller Card (Marvell 88SE9128 Chipset) - Support Hardware RAID 0, 1

  • Product Specifications:

    • Dimensions 2.7 x 2.3 x 0.7 inches / 66 x 55 x 18 mm
    • Weight 1.2 ounces / 32 g
    • Capacity PCIe 2.0 x1 Lane; Up to 6 Gbps (SATA III)
    • Chipset MARVELL 88SE9128C0
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with Marvell 88SE9128. Supports Hardware RAID 0 and 1 modes
  • Support Port Multiplier FIS-based and Command-based switching
  • No driver installation is required on Windows 10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.



Product Description

Add two SATA 6G ports with up to 6 Gps data rate to your computer.



Specification

  • Connector:
    • 2 x SATA (7 pin; DATA) Plug
  • Chipset: MARVELL 88SE9128
  • Software:
    • No driver installation is required on Windows 10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Drivers are available for Windows XP
  • Data transfer rate:
    • Up to 6 GBps
  • 6Gbps SATA III Internal 2 Ports PCIe Gen2 One Lane Host Adapter
  • Hardware RAID controller to offload host CPU for max performance
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with 5Gbps PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports Non-Raid, Hardware RAID 0, 1 for HDD & SSD
  • Supports Non-Raid mode for Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Hot-plug, and Native Command Queuing (NCQ)
  • Supports one SATA FIS-based or Command-based Port Multiplier
  • LED Pin headers for LED activity indicators for each port
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • BIOS on board supports Windows booting
  • Fully RoHS compliant.
  • Made in Taiwan



Package Contents

  • Ableconn 2 Port SATA 6G AHCI PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   How can I tell the PEX-SA115 is recognized by the computer?
Answer:
PEX-SA115 is compliant with AHCI and is supported by built-in AHCI driver on Windows 10, 8, 7, Vista, 2008, 2012.

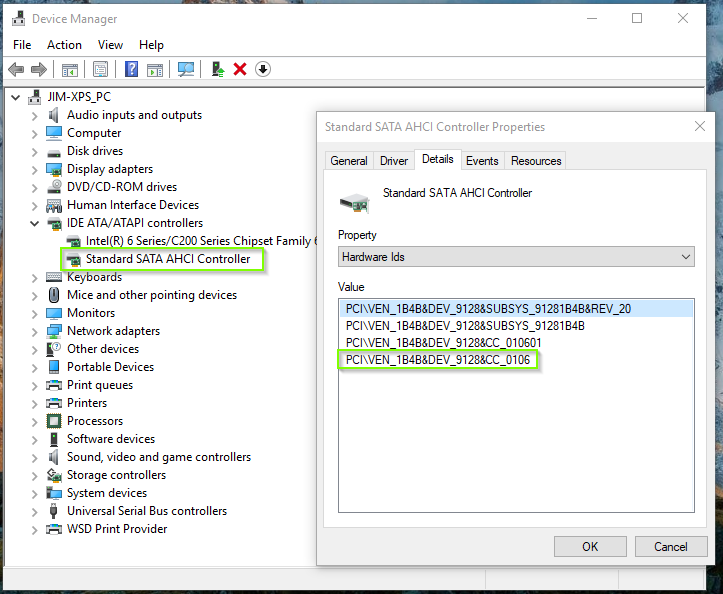

Please check "IDE ATA/ATAPI controllers" of Device Manager. Click Details tab of "Standard SATA AHCI Controller Properties" (see screenshot below)
The Hardware Ids:  PCIVEN_1B4B&DEV_9128

Q 2 .   It goes to a black screen after Installed the card on a DELL system with a working Windows 10. It boots the system normal once removed the card. What can I do?
Answer:

It's because the Dell BIOS changes boot drive sequence incorrect when it detects a new one.

Please boot into BIOS and select "Boot" setting screen like below.

Select "Hard Disk Drives" and enter.





Select your boot drive as 1st Boot. (the BIOS may change drive sequence in correct by itself.)



Q 3 .   Can I set up RAID 1 to a non-RAID drive and preserve the existing disk data?
Answer:

No. The Marvell 88SE9128 will destroy all data on the physical disks included in the virtual disk when creating a RAID virtual disk. Please back up the existing drive with important data before applying RAID and then restore data to the new created RAID.

Please refer to 3-5 of MSU Guide for details:
