Ableconn PEX-SAT4R 4-Port SATA 6G PCI Express 2.0 Host Adapter - PCIe AHCI SATA III 6Gbps RAID Controller Card Support HyperDuo SSD Tiering (Marvell 88SE9230 Chipset)

Ableconn PEX-SAT4R 4-Port SATA 6G PCI Express 2.0 Host Adapter - PCIe AHCI SATA III 6Gbps RAID Controller Card Support HyperDuo SSD Tiering (Marvell 88SE9230 Chipset)

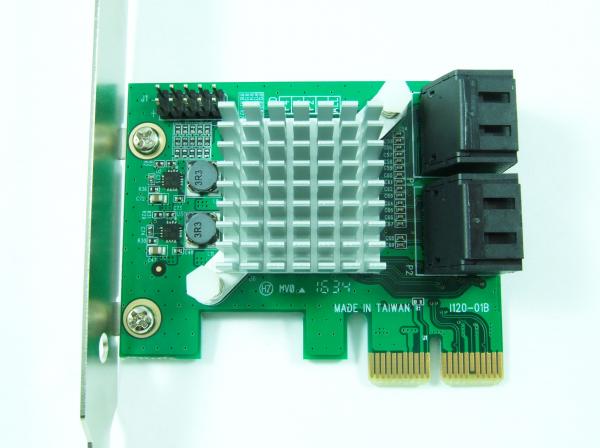

  • Product Specifications:

    • Dimensions 2.7 x 2.3 x 0.7 inches / 72 x 68 x 18 mm
    • Weight 1.7 ounces / 50 g
    • Capacity PCIe 2.0 x2 Lane; Up to 6 Gbps (SATA III)
    • Chipset MARVELL 88SE9230
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with Marvell 88SE9230. Supports Hardware RAID 0, 1, 10, and HybridDrive modes (powered by Marvell HyperDuo). Support on-the-fly AES 128/256-bit encryption
  • Support Port Multiplier FIS-based and Command-based switching
  • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.


Product Description

Add four SATA 6G ports with up to 6 Gps data rate to your computer.


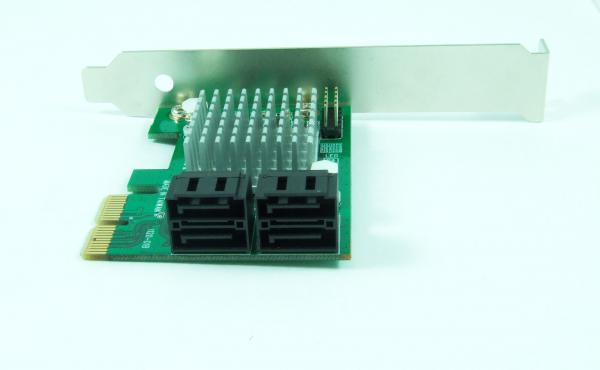

Specification

  • Connector:
    • 4 x SATA (7 pin; DATA) Female
  • Chipset: MARVELL 88SE9230
  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Drivers are available for Windows XP
    • Provides Windows & Mac & Linux GUI and Windows BIOS to configure Hardware RAID 0, RAID 1, RAID 10, HybridDrive modes to drives these directly attached to this Host Adapter
  • Data transfer rate:
    • Up to 6 GBps
  • 6Gbps SATA III Internal 4 Ports PCIe Gen2 x2 Lane Host Adapter
  • Hardware RAID controller to offload host CPU for max performance
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with 10Gbps x2 PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports totally max 7 drives connected
  • Supports max one SATA FIS-based or Command-based Port Multiplier and max 4 non-Raid individual HDD or SSD connected to Port Multiplier
  • Supports ATA and ATAPI commands
  • Supports SATA Hot-plug, and Native Command Queuing (NCQ)
  • Support on-the-fly AES 128/256-bit encryption

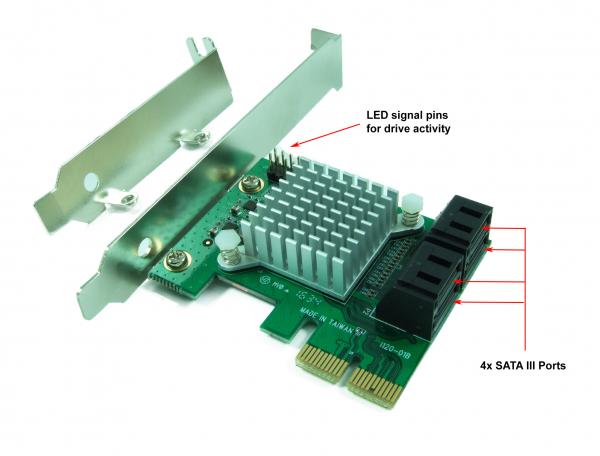

  • LED Pin headers for LED activity indicators for each port
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Power consumption:
    • Maximum: 2.7W from PCI-E 3.3V
  • Temperature:
    • Operating:  +0 ºC to +70 ºC
    • Non Operating: −25 ºC to +80 ºC
  • Humidity:
    • Operating:  20％ to 80％
    • Non Operating:  15% to 90％
  • Fully RoHS compliant.
  • Made in Taiwan



Package Contents

  • Ableconn 2 Port SATA 6G PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   It goes to a black screen after Installed the card on a DELL system with a working Windows 10. It boots the system normal once removed the card. What can I do?
Answer:

It's because the Dell BIOS changes boot drive sequence incorrect when it detects a new one.

Please boot into BIOS and select "Boot" setting screen like below.

Select "Hard Disk Drives" and enter.



Select your boot drive as 1st Boot. (the BIOS may change drive sequence in correct by itself.)

Q 2 .   How can I tell the PEX-SAT4R is recognized by the computer?
Answer:
PEX-SAT4R is compliant with AHCI and is supported by built-in AHCI driver on Windows 10, 8, 7, Vista, 2008, 2012.
Please check "IDE ATA/ATAPI controllers" of Device Manager. Click Details tab of "Standard SATA AHCI Controller Properties" (see screenshot below)
The Hardware Ids:  PCIVEN_1B4B&DEV_9230
