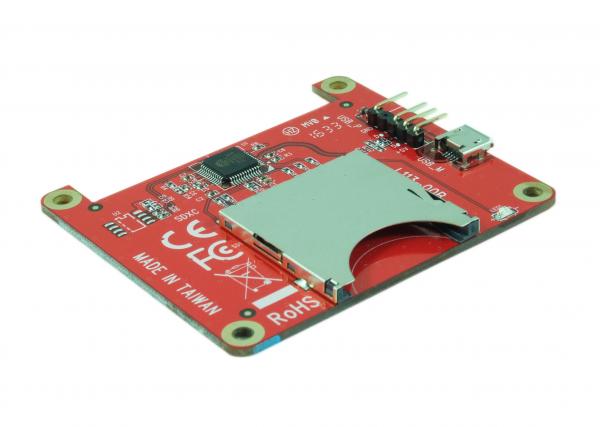

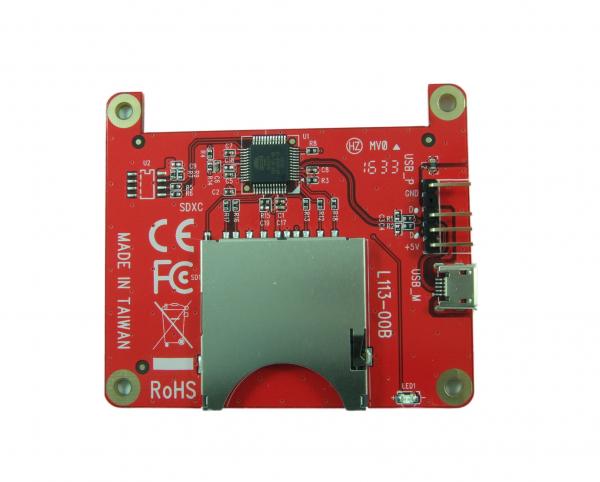

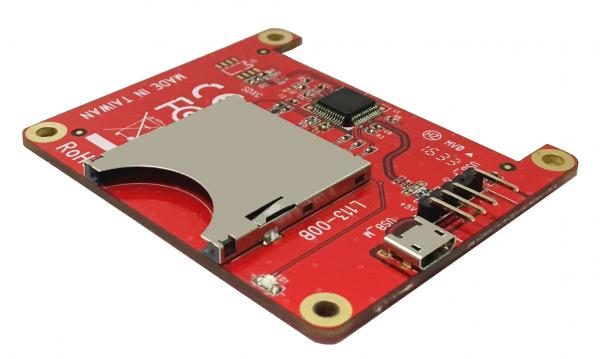

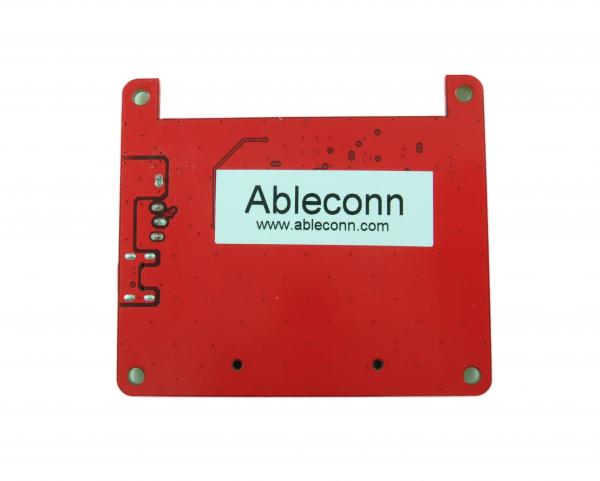

Ableconn PIUSBSDXC USB 2.0 to SD 3.0 (SDXC) Converter Stackable Board for Raspberry Pi

Ableconn PIUSBSDXC USB 2.0 to SD 3.0 (SDXC) Converter Stackable Board for Raspberry Pi

  • Product Specifications:

    • Dimensions 2.6 x 2.2 x 0.2 inches / 66 x 56 x 4 mm
    • Weight 0.6 ounces / 16 g
    • Capacity USB 2.0 up to 480 Mbps
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

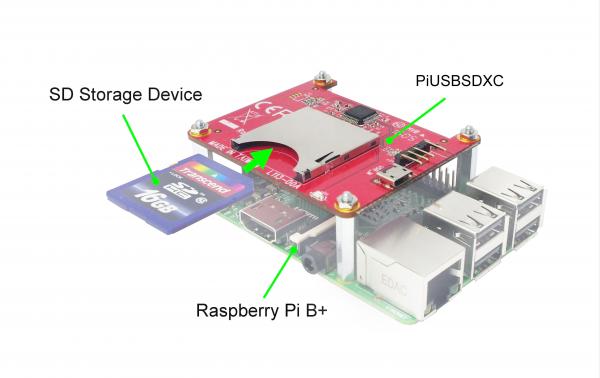

  • Connect SD card with your Raspberry Pi via the Micro-B USB port or the USB 5-Pin pin header connector.
  • Support 2TB UHS-1(104 MB/s) and SD spec V 3.0 SDXC (Secure Digital eXtended Capacity)
  • Includes Multi-Pi mounting accessory of standoff, nuts, and screws
  • No device driver installation is required
  • Fully RoHS compliant. High quality product, Made in Taiwan.


Product Description

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PIUSB-M2S let you connect M.2 SATA SSD module to your Raspberry Pi via the USB Micro-B port or the on-board USB pin header.


Specification

  • Connector:
    • 1 x USB 2.0 Micro-B female
    • 1 x USB 5-pin pin header (Pin Header assignment: 5V, D-, D+, NC, GND)
    • 1 x SD slot
  • Chipset: Alcor AU6479
  • Data transfer rate:
    • USB 2.0 up to 480 Mbps



  • Support 2TB UHS-1(104 MB/s)
  • Support SD spec V 3.0 SDXC (Secure Digital eXtended Capacity)
  • Compliant with USB 2.0, OHCI 1.0a, and EHCI 0.95
  • LED indicator for SD accessing activity
  • Includes Multi-Pi mounting accessory of standoffs, nuts, and screws for Raspberry Pi
  • Dimensions (LxWxH): 2.6 x 2.2 x 0.2 in / 66x 56 x 4 mm
  • Fully RoHS compliant.
  • No device driver installation is required.
  • Made in Taiwan


System Requirements

  • One free USB port
  • USB connection cables


Package Contents

  • Ableconn PIUSBSDXC USB 2.0 to SD 3.0 (SDXC) Converter Board
  • Multi-Pi mounting accessory: 4 x standoff, 4 x nut, and 4 x screw
  • 1x USB-A to Micro-B cable (4 in/10 cm)
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
