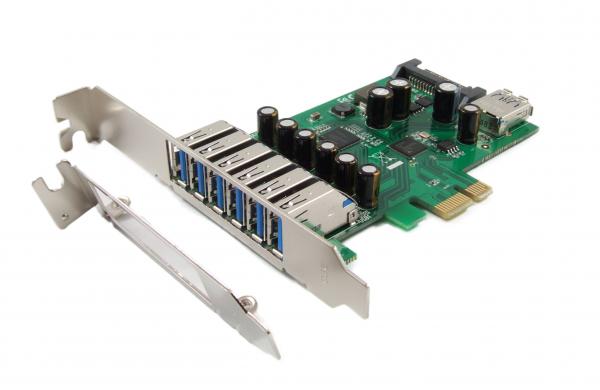

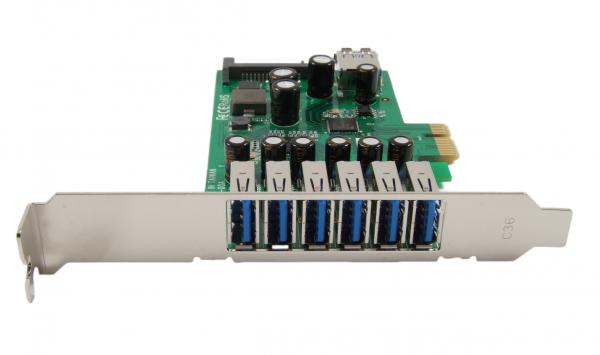

Ableconn PEX-UB127 7-Port USB 3.0 6x External + 1x Internal PCI Express (PCIe) Low Profile Host Adapter Card - Renesas NEC UPD720201 chipset

Ableconn PEX-UB127 7-Port USB 3.0 6x External + 1x Internal PCI Express (PCIe) Low Profile Host Adapter Card - Renesas NEC UPD720201 chipset

  • Product Specifications:

    • Dimensions 4.5 x 2.7 x 0.7 in / 108 x 68 x 18 mm
    • Weight 2.6 ounces / 75 g
    • Capacity USB 3.0 up to 5 Gbps
    • Chipset NEC Renesas uPD720201 + uPD720210 (Hub)
    • Compatibility No driver installation is required on Windows 10, 8, Server 2012, Linux kernel 2.6.31 and later OS.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Seven USB 3.0 Type-A connectors. Up to 5Gbps data transfer speed.
  • PCIe x1 lane Low Profile board. Include both Low Profile and Regular Size PCIe brackets.
  • Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/1A bus power on each USB port.
  • No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
  • Built with NEC Renesas uPD720201. High quality. Fully RoHS compliant. Made in Taiwan.



Product Description


 Add External six Ports and Internal 1 Port USB 3.0 SuperSpeed 5Gbps in Low Profile PCIe Host Adapter to support all kind of USB 3.0, USB 2.0, USB 1.1 Devices.


Specification

  • Connector:
    • 7 x USB 3.0 Type-A female (6x external + 1x internal)
    • 1 x 15-pin SATA power connector (optional connection)
  • Chipset: NEC Renesas uPD720201 + uPD720210 (Hub)
  • Software:
    • No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
    • The Renesas drivers are available for 32/64 bit Windows Windows 7/Vista/XP, and 64bit Server 2008 R2
  • Data transfer rate:
    • USB 3.0 up to 5 Gbps
  • USB 3.0 PCI Express 2.0 x1 Lane Host Adapter
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with PCI Express Specification 2.0
  • Compliant with Universal Serial Bus 3.0 Specification Rev. 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
  • Support USB Attached SCSI Protocol (UASP).
  • Support USB3.0, USB2.0 and USB1.1 devices
  • Provides 5V/1A USB bus power to USB devices from Motherboard PCIe slot directly, or from PC power supply if on board 15Pin SATA power connector connected
  • Low Profile PCIe Form Factor board
  • Include both Low Profile and Regular Size PCIe brackets
  • Fully RoHS compliant.
  • Made in Taiwan



Package Contents

  • Ableconn USB 3.0 7-Port PCIe Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   What is the SATA power connector for? Does it require to be connected?
Answer:

If full load each USB port, it requires at least 7 (ports) * 5W (5V*1A) = 35W power.Per PCI Express specification, the power supplied from PCIe bus to a 1-lane/low profile card is 10W (max). Therefore, it requires additional power source such as SATA power from PC power supply.
